Plunge-cut saws

MT 55 cc | MT 55 18M bl

Precision enhanced by flexibility: Plunge-cut saws MT 55 cc and MT 55 18M bl.

The idea of developing a new plunge-cut saw is not new in itself. The novel aspect in this case, however, was a fundamental rethink and the modeling of all components to create a unique tool. In consequence, the new MAFELL plunge-cut saw is not only extremely precise and easy to use, but also – thanks to innovative battery technology – more portable than ever before.

Built for better results: The MT 55 cc and MT 55 18M bl.

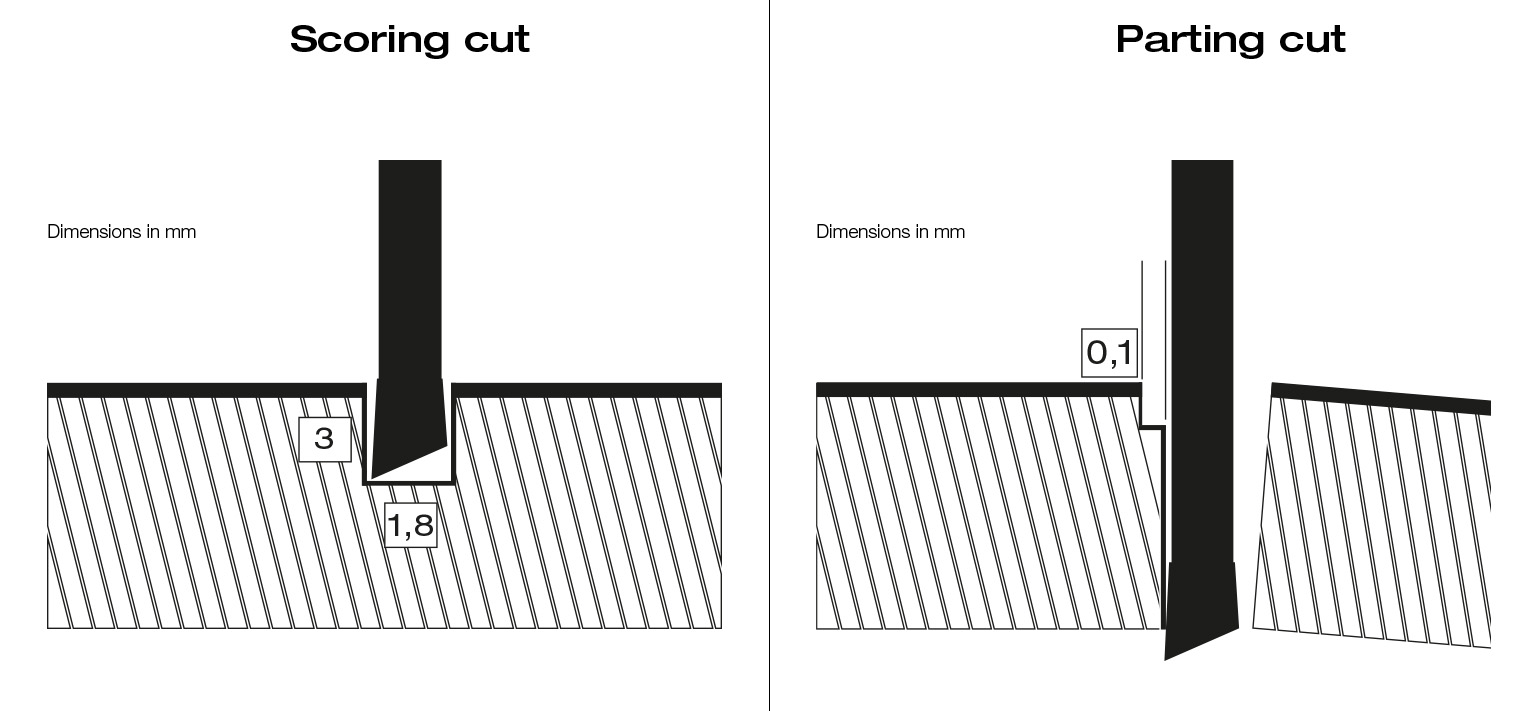

The MT 55 is a high-precision jack of all trades. It executes plunge, parting, bevel and angled cuts without any tearing. It can saw fiberboard, Multiplex, laminated and sandwich board, oriented strand board, gypsum wallboard, soft fiberboard, cement fiber panels and decorative laminates just as precisely as solid wood, Plexiglas, aluminum, including profiles, floor laminates and floor panels.

The best of both worlds. Battery or mains-powered.

These are powerhouses for every need. Two high-performance versions of the compact MT 55 are now available. The MT 55 18M bl features the latest battery technology and offers maximum portability. And the MT 55 cc, with its proven CUprex high-output motor, delivers unsurpassed power.

Always a cut above the rest. For quality and functionality.

Only machines manufactured with a passion for detail deliver supreme performance long-term. The MT 55 is a prime example in view of its extremely rugged and high-quality materials and an ergonomic design that makes working both easier and more efficient.

Technical data

Description

Plunge-cut saw MT 55 18M bl

Nominal power input

-

Nominal speed – no load

4,850  1/min

Cutting depth

0 – 57  mm (2 1/4 inch)

Cutting depth at 45°

0 – 40.5  mm (1 5/8 inch)

Tilting range

– 1° – +  48°

Voltage rating

18 V

Weight

4.5 kg (9,9 lbs)

Description

Plunge-cut saw MT 55 cc

Nominal power input

1,400  W

Nominal speed – no load

3,600 – 6,250  1/min

Cutting depth

0 – 57  mm (2 1/4 inch)

Cutting depth at 45°

0 – 40.5  mm (1 5/8 inch)

Tilting range

– 1° – +  48°

Voltage rating

230 V

Weight

4.5 kg (9,9 lbs)

Delivery scope

MT 55 18M bl

1 TCT sawblade 162 x 1.2/1.8 x 20 mm, 48 ATB teeth
2 Battery-PowerTank 18 M 99
1 Position indicator MT-PA
1 Parallel guide fence
1 Allen key 5 mm
1 Dust bag
1 Battery-PowerStation APS 18M

Ref. No. 91B401
MT 55 18M bl in T-MAX



MT 55 18M bl PURE

1 TCT sawblade 162 x 1.2/1.8 x 20 mm, 48 ATB teeth
1 Position indicator MT-PA
1 Parallel guide fence
1 Allen key 5 mm
1 Dust bag

Ref. No. 91B402
MT 55 18M bl PURE in T-MAX

MT 55 cc MidiMAX

1 TCT sawblade 162 x 1.2/1.8 x 20 mm, 48 ATB teeth
1 Allen key 5 mm
1 Mains cable 4 m (13.1 ft)

Ref. No. 917602
MT 55 cc MidiMAX in T-MAX

MT 55 cc MaxiMAX

1 TCT sawblade 162 x 1.2/1.8 x 20 mm, 48 ATB teeth
1 Position indicator MT-PA
1 Parallel guide fence
1 Allen key 5 mm
1 Mains cable 4 m (13.1 ft)

Ref. No. 917603
MT 55 cc MaxiMAX in T-MAX

Accessories

The MT 55 offers not only compelling power, precision and flexibility, but also an impressive range of optional accessories. You can therefore customize your own MT 55 perfectly to suit individual requirements and the tasks in hand.

TCT sawblade

162 x 1,2/1,8 x 20 mm, Z 48, WZ
for universal use with boards
Ref. No. 092584

TCT sawblade

160 x 1,2/1,8 x 20 mm, Z 24, WZ
for universal use with wood
Ref. No. 092533

TCT sawblade

160 x 1,2/1,8 x 20 mm, Z 16, WZ
for ripping in wood
Ref. No. 092539

TCT sawblade

160 x 1,2/1,8 x 20 mm, Z 32, WZ
for universal use with wood
Ref. No. 092552

TCT sawblade

160 x 1,8/2,0 x 20 mm, Z 56, FZ/TZ
for fine sawing in wood
Ref. No. 092553

TCT sawblade

160 x 1,2/1,8 x 20 mm, Z 48, FZ/TR
for decorative laminates (Trespa)
Ref. No. 092569

Diamond sawblade

160 x 2,4/3,0 x 20 mm, Z 4, FZ/TZ
for cement-bound materials
Ref. No. 092474

Battery-PowerStation

APS M
Ref. No. 094492
High-speed charger
APS M+
Ref. No. 094509

Battery-PowerTank

PowerTank 18 M 72 LiHD, 18 V, 72 Wh
Ref. No. 094500

PowerTank 18 M 99 LiHD, 18 V, 99 Wh
Ref. No. 094503

PowerTank 18 M 144 LiHD, 18 V, 144 Wh
Ref. No. 094498

Dust bag

1 off
Ref. No. 206921

Guide rail F

F 80 - Length 0,80 m
Ref. No. 204380
F 110 - Length 1,10 m
Ref. No. 204381
F 160 - Length 1,60 m
Ref. No. 204365
F 210 - Length 2,10 m
Ref. No. 204382
F 310 - Length 3,10 m
Ref. No. 204383

Guide track set with bag

Guide tracks & bag F 160
for guide tracks up
to 1,6 m length
Ref. No. 204626
Guide track set with bag
2 x F 160 + F-VS + 2 x F-SZ 180MM
+ guide track bag
Ref. No. 204805
Guide track set with bag
F 80 + F 160 + F-WA + F-VS
+ 2 x F-SZ 180MM
+ guide track bag
Ref. No. 204749

Angle fence F-WA

1 off
Ref. No. 205357

End cap F-EK

2 off
Ref. No. 205400

Non-slip profile F-HP 6,8M

1 off - Length 6.8 m
Ref. No. 204376

Lever clamp F-SZ 180MM

2 clamps, for fixing track to work
Ref. No. 207770

Connecting piece F-VS

For joining two guide tracks
Ref. No. 204363

Splinter guard F-SS 3,4M

1 off - Length 3.4 m
Ref. No. 204375

Parallel guide fence

with wing screws
Ref. No. 203214

Suction clamping system

Aerofix F-AF 1
with 1.3 m (4 ft 3 in) rail,
adapters for above and
underneath rail, flexible hose
Ref. No. 204770
Flexible hose FXS L
Length up to 3,2 m
Ref. No. 205276
